Description

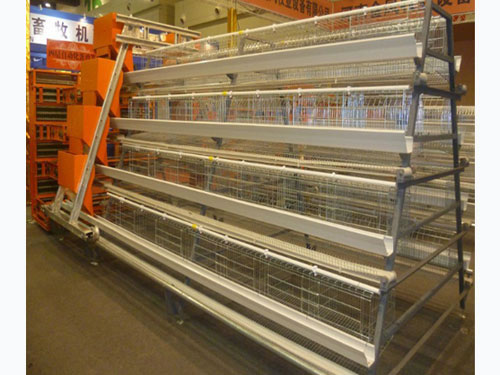

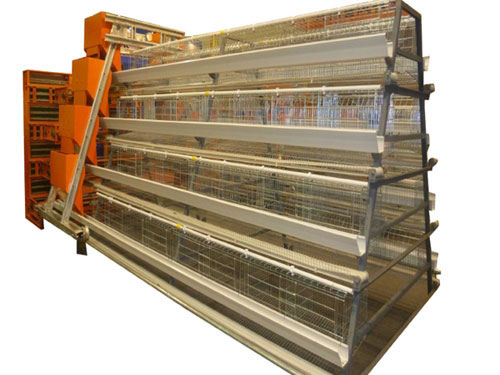

A-frame layer cage is mainly composed of bottom net, upper net, partition mesh, cage door, etc. This chicken cage is made of hot galvanized steel wire. The water control system in this cage is capable of supplying clean and fresh water to each chicken. Stainless steel nipple drinkers are used in the water system. Loading capacity of each layer is 40 kg/pcs. Therer are A-frame layer cages with two, three, four or five tiers to meet customer’s requirements.
Features
1. The design of this type of chicken cage meets international standards.
2. All our poultry cages have passed ISO 9001:2008 certification.
3. A-frame layer cages have effectively reduced the sickness and death rate of birds.
4. This chicken cage can realize high density raising that saves resources and space for clients.
5. With good ventilation effect, this poultry cage can effectively prevent chicken diseases.
6. The centralized management of A-frame layer cage saves energy and labor cost.
7. Our chicken cages are made of good quality steel welded with special technique. The surface of the cage has been hot-dip galvanized. Its surface is smooth.
8. This poultry cage features long lifespan and high strength.
9. The smooth surface of the A-frame layer cage makes chicken manure easily fall into manure collecting track. Therefore, the manure will not stay in the wire and cause pollution to egg and chicken.
10. We have advanced automated galvanization line for poultry equipment manufacturing.
General Parameters of A-Frame Layer Cage
| Material | Q235 Steel Wire |
| Surface Treatment | Galvanization |
| Color | Silver White |
| Warranty | 20 Years |
| Chicken Cage Tiers | 2/3/4/5 |
| Water System | Automatic/Semi-Automatic |
| Feeding Way | Automatic/Semi-Automatic |
| Manure Removal System | Automatic/Semi-Automatic |
| Egg-Collection System | Automatic/Semi-Automatic |
| Export Markets | Global |
| Main Tech-Data of A-Frame Chicken Cages | ||
| Item NO. | / | 9BLDT-A3060-23 |
| Materials | / | Q235 Steel wire |
| Surface Treatment | / | electricity galvanization |
| Tiers | / | 3tiers |
| Dimensions/Unit | mm | (L × W × H)1950 × 400 × 400 |
| Installation Dimensions/Unit | mm | (L × W × H)1990 × 2200 × 1500 |
| Cells/Unit | pcs | 5(390 mm/cell × 5cells) |
| Rearing Period | weeks | From 16 weeks |
| Floor Space/Bird | cm² | 780 |
| Birds/Cell | birds | 2 |
| Bottom Wire Mesh Angle | / | 9° |
| Distance of Bottom Wire | mm | ≤25 |
| Sets/Row | sets | 1--55 |
| Main Tech-Data of A-Frame Chicken Cages | ||
| Item NO. | / | 9LDT-41960-25 |
| Materials | / | Q235 Steel wire |
| Surface Treatment | / | Hot dipped galvanization |
| Tiers | / | 2/3/4/5/tiers by clients' option |
| Dimensions/Unit | mm | (L × W × H)1950 × 350 × 380 |
| Installation Dimensions/Unit | mm | (L × W × H)1990 × 2400 × 1900 |
| Cells/Unit | pcs | 5(390 mm/cell × 5cells) |
| Rearing Period | weeks | 16 weeks-72 weeks |
| Floor Space/Bird | cm² | 455 |
| Birds/Cell | birds | 3 |
| Bottom Wire Mesh Angle | / | 9° |
| Distance of Bottom Wire | mm | ≤25 |
| Sets/Row | sets | 1--55 |
is a well-known supplier of A-frame layer cage in China. Our enterprise integrates independent research and development, manufacture, marketing and service. In addition to chicken cage or poultry cage, we also supply Lantoky machinery, cold storage warehouse, condensing unit, air cooler, cold room door, PU sandwich panel, etc. We can send technicians for factory check, products inspection and communication.
