Description

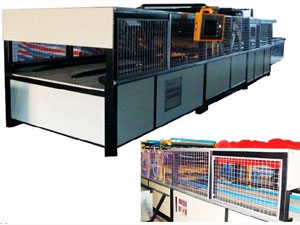

Horizontal type 3D panel production line has a wire inserting and welding machine which processes 3D panel in a horizontal way. The wire mesh welding machine is vertical or horizontal type. There is no need to precut the wire. This horizontal type 3D panel line inserts wires into polystyrene panel and then welds and cuts the wires automatically. It saves more labor force. Horizontal type 3D panel production line is controlled by PLC.
Features
1. The wire mesh processed by this equipment has perfect flatness.
2. Horizontal type 3D panel line has strong welding strength.
3. 3D panel production line also features low solder skips rate.
4. The truss wire is inserted accurately. Length and mesh size of the truss wire have high accuracy.
5. This machine is capable of producing different kinds of 3D panels with different quantity of truss wires to meet different purposes.
6. Main components used in the 3D panel production line are from world-famous brands.
7. Horizontal type 3D panel line can be operated through touch screen. Operation and maintenance of this machine is very easy.
Parameters
| Input Power Supply | AC380V, 50HZ, 75KVA | |
| Air Source Equipment | 3m3/min, 0.6 MPa | |
| Standard Size | Wire Mesh Structure | 50 mm × 52 mm |
| Welded Mesh Wire Diameter | 1.8mm -2.8 mm | |
| Inserting Wire Diameter | 1.8 mm -2.8 mm | |
| Thickness of Lantoky Core | 50 mm-100 mm | |
| Structure of Inserting Wire | sparse, dense inserting single, double sides mesh |
|
| Distance between Lantoky Core and Mesh | 10 mm | |
| Length | 3000 mm-6000 mm | |
| Width | 1220 mm | |
| Non-Standard Size | Wire Mesh Structure | As Requirement |
| Welded Mesh Wire Diameter | 3.0 mm-3.5 mm or as requirement | |
| Inserting Wire Diameter | 3.0 mm-3.2 mm or as requirement | |
| Thickness of Lantoky Core | 100 mm-150 mm or as requirement | |
| Productivity | Dense inserting: 400-500m2/8hours Sparse Inserting: 700-800m2/8hours |
|
| Material | Wire Materials | Galvanized or cold drawing low carbon wire |
| Material of Lantoky Core | Fire resistance type | |
| 3D Panel Lack Welding Rate | ≤3% | |
| Measurement of the Machine | 3d Panel Machine Length | 13500 mm |
| 3d Panel Machine Width | 1800 mm | |
| 3d Panel Machine Height | 1700 mm | |
| 3d Panel Machine Weight | 4000 kg | |
is a well-known supplier of 3D panel production line in China. Our enterprise integrates independent research and development, manufacture, marketing and service. In addition to this horizontal type 3D panel line, we also supply Lantoky machinery, cold storage warehouse, condensing unit, air cooler, cold room door, PU sandwich panel, etc. We can send technicians for factory check, products inspection and communication.
