Broiler Raising Equipment (Broiler Equipment)

Broiler Raising Equipment

Description

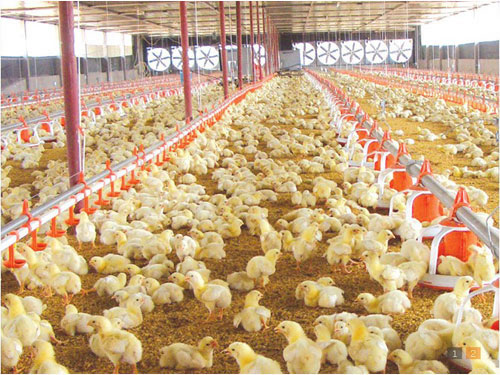

Broiler raising equipment or broiler farming equipment is mainly composed of feeding line, nipple drinking system, fans, cooling pad, environment controller, hanging system, water level indicator and Ventilation system, etc. This poultry equipment can meet the requirements of raising broiler during any growing period. Broiler raising equipment has an automated feeding system. It reduces labor intensity. One person is enough for managing one chicken house.

Features

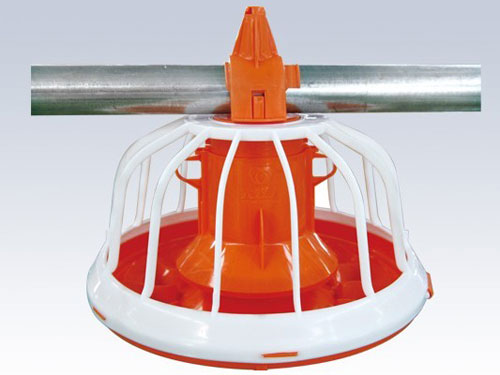

1. The feeding line of the broiler farming equipment delivers feed from silo to feeding hopper. There is one feeding sensor at the end of the main feeding line.

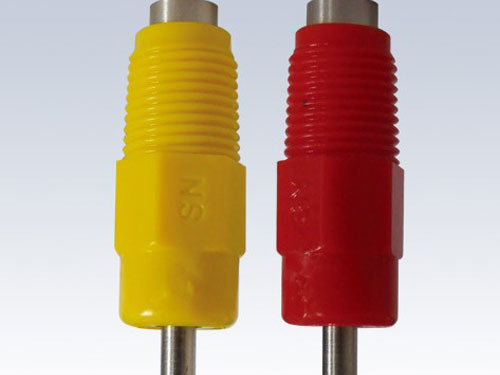

2. The nipple shell is made of high-quality engineering plastics. The valve rod is made of high-quality stainless steel. The rod is corrosion-resistant and rust-proof. It has more than ten years’ service life. The drinking system of the broiler raising equipment or broiler farming equipment has a double-deck sealed structure which can avoid water waste and reduce humidity. The stem can rotate in 360 degree to meet broilers’ demands of water. The feeding capacity of the drinking system is 8 to 12 birds/nipple.
3. The height and level of drinking line can be adjusted freely by winch with adjusting rope. Improper height will cause broilers’ skeleton deformation and low water utilization rate.
4. The indicator tube is made from high-strength plastics. It is easy to clean.
5. The medicine pump of the broiler raising equipment can dose water solubility medicine automatically to prevent disease. Water pressure is used as power source instead of electricity. This method is economical and reliable. The medicine pump can adjust the amount of additive and water content precisely. The operation is very easy. The medicine pump is rust-proof and corrosion-resistant.

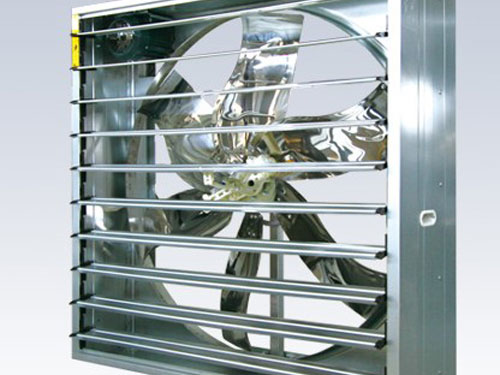

6. The axial-flow fan of the broiler farming equipment has a belt tensioner. The belt tensioner helps to improve transmission efficiency.
7. The centrifugal system of the axial-flow ventilation fan can open the shutter automatically. It features smooth operation, low noise and consistent air flow. When power is off, the shutter would be closed by the force of gravity and spring. The shutter pieces are closed tightly and have good sealing effect. This ventilation fan of the broiler raising equipment has a patented design. It is made of pure raw material (PA6). It is corrosion-resistant and aging-proof. The guide rod is made of wrapped steel columns through injection molding process. The rod is sturdy and reliable.

Technical Data of Medical Pump

Flow Rate 10 L / h — 2.5 m3/h
Working Pressure 0.3bar—6bar
Dosing Rate 0.02L / h — 50 L/ h
Maximum Working Temperature 40℃
Adjustment Ratio 0.2% to 2%(1:500—1:50)
Connecting Size external thread G3/4
Water Flow 0.45L every other ‘kata’ click sound



is a well-known supplier of broiler raising equipment or broiler farming equipment in China. Our enterprise integrates independent research and development, manufacture, marketing and service. In addition to this poultry farming equipment, we also supply  EPS machinery, cold storage warehouse, condensing unit, air cooler, cold room door, PU sandwich panel, etc. We can send technicians for factory check, products inspection and communication.
