Hermetic Condensing Unit

Hermetic Condensing Unit

Description

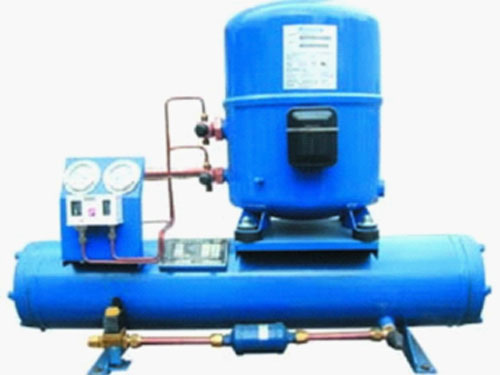

Hermetic condensing unit has a hermetic compressor. We can provide non-standard design according to clients’ requirements. This hermetic compressor condensing unit is mainly composed of compressor, liquid reservoir, condenser, solenoid valve, pressure controller and pressure gage. The protective devices include phase protector, low water-level protector, water-flow switch protector, water pump overload protector, compressor overload protector and high and low pressure switches protector. Hermetic condensing unit is applicable to refrigeration industry, cold storage project, agriculture industry, food industry, chemical industry, medical treatment and health care, and scientific research.

Features
1. The power part of hermetic condensing unit is supplied by the world famous brand BITZER. It has good quality.
2. Hermetic compressor condensing unit can suit all kinds of working conditions. Its quality is trustable.
3. It features low energy consumption, small vibration and low noise.
4. Hermetic condensing unit has superior properties. It saves more electricity than similar products.

Use and Maintenance
1. The condenser, cooling water tower, filter and evaporator should be washed regularly to keep the hermetic condensing unit running well.
2. Continuously switching the operating switches should be avoided.
3. Chilled water pump cannot be used when water tank is empty.
4. Clients should clean the cooling water tower and the cooling fins regularly and keep good heat dissipation.
5. It is normal that the chilled water reaches the set temperature, the compressor would stop automatically.
6. except for the low-temperature refrigerator, clients should not set the temperature switch to below 5℃.
7. Clients should check the lubrication oil after the hermetic condensing unit has run continuously for 10000 hours. It is suggested to change lubrication oil and wash the filter after it runs 1000 hours for the first time.

Parameters
Model of Hermetic Condensing Units
FPMT -018 FPMT -022 FPMT -028 FPMT -032 FPMT -036 FPMT -040 FPMT -050 FPMT -064 FPMT -080 FPMT -100 FPMT -125 FPMT -144 FPMT -160
MT18 MT22 MT28 MT32 MT36 MT40 MT50 MT64 MT80 MT100 MT125 MT144 MT160
18964 2713 3947 4219 5062 5515 6217 8172 10340 12167 16199 18339 20344
1.45 1.89 2.55 2.98 3.37 3.85 4.32 5.66 7.13 7.98 10.66 11.95 13.39
2.73 3.31 4.56 4.97 5.77 6.47 8.46 9.54 11.58 14.59 17.37 22.75 22.16
5/12 6/15 7.5/16 8/20 9/120 10 12 15 18 22 17 30 36
R22
400V-3PH-50Hz/230V-1PH-50Hz
54W Belt type crankcase heater 50W Belt type crankcase heater 75W Belt type crankcase heater
90 90 120 120 120 90/120×2 90/120×2 120×2 120×2 120×4 120×4 120×4 120×4
0.2 0.2 0.3 0.3 0.3 0.2/0.3×2 0.2/0.3×2 0.3×2 0.3×2 0.3×2 0.3×4 0.3×4 0.3×4
0~-20℃
+12~-10℃
