Ice Cream Filling Machine

Ice Cream Extrusion Line
A-Frame Layer Cages

Description

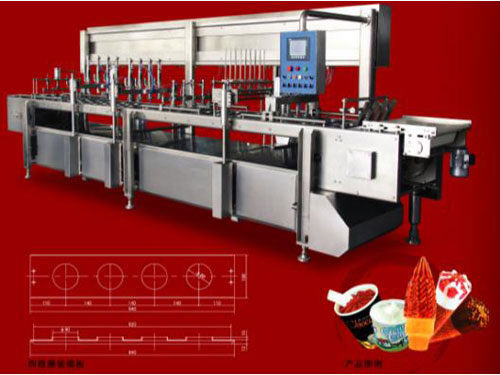

Ice cream filling machine is four-row ice cream equipment of linear-movement. This ice cream filler ranks top in the related industry in China. It has the functions of automatically sorting cream cones, capping, cap pressing, pushing out product and conveying. This product is manufactured with standard technology. Ice cream filling machine is mainly used for filling various single-color and double-color ice creams, decoration, spraying chocolate, filling jam, and spraying fruit particles.

Features
1. Time-limited filling theory is adopted to prevent the ice cream structure from break and damage when filling. Complete shape and good taste of ice cream are ensured.
2. ice cream filler can realize orderly filling and accurate measuring.
3. Advanced electrical elements are used in this ice cream filling machine, such as Siemens TD-200 type operation screen, American MAC solenoid valve, Wuxi Hengli’s cylinder and PLC controller.
4. This product has beautiful appearance. It has simple operations and it is easy to clean.
5. ice cream filler is suitable for large and medium-sized enterprise.

Parameters of Ice Cream Filling Machine
Output Filling Speed 7000-9000 piece/hour
Weight/Piece 50-250 g
Mould Size 478 × 136 × 2 (mm)
Product Center Distance 100 mm
Plant Quantity 72 piece
Power Voltage 380 V
Frequency 50 HZ
Main Drive 0.75 KW
Transmission Drive 0.37 KW
Chain Chain Pitch 70 mm
Length 24 m
Total Power 3 KW
Compressed Air Compress 0.6-0.7 MPA
Consumed Air 2.0 m³/min
Whole Machine Weight 1.3 t
Dimensions (L × W × H) 4200 × 1220 × 1980 (mm)

Wealth is an ice cream filler supplier in China. In addition to ice cream filling machine, we also provide ice cream extrusion line, colored ice cream machine and rotary stick ice cream bar machine. We offer one-stop service for our products to our clients. We have technicians to test all our products. Our products including Lantoky machinery have been exported to many countries and regions, such as Romania, Bulgaria, Russia, Uzbekistan, Iran, India, Indonesia, Nigeria, Ethiopia, etc.
