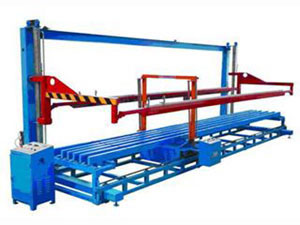

PSC200-800C Block Cutting Machine

EPS Block Cutting Machine

Description
PSC200-800C block cutting machine is used for cutting EPS blocks. It is a semi-automated EPS foam cutter. This machine is a hot wire cutter. It has the functions of horizontal, vertical and down cutting. Multiple wires are installed in this machine to increase the efficiency of down cutting. This block cutting machine is capable of cutting both sheets and blocks.

Main Features
1. This EPS foam cutter can make horizontal cutting, vertical cutting and down cutting automatically, but the wires should be set by hand.
2. The structure of the machine frame is very strong. The frame of the block cutting machine is welded from square structural steel. It has great strength and never deforms.
3. It is controlled through control box.
4. A special multi-tap transformer is used for adjusting the voltage of the block cutting machine.
5. A converter is used to control the cutting speed. The range of the cutting speed is from 0 to 4m/min.

Package and Delivery
C series block cutting Machines are packed in containers and transported by sea.

Parameters Form

Model No. of Block Cutting Machines: PSC200-800C
Item PSC200C PSC400C PSC600C PSC800C
Max Block Size 2000×1300×1300 (mm) 4000×1300×1300 (mm) 6000×1300×1300 (mm) 8000×1300×1300 (mm)
Power 22.3 kW 22.3 kW 22.3 kW 22.3 kW
Overall Dimension 4400×2600×3250 (mm) 6400×2600×3250 (mm) 8400×2600×3250 (mm) 10400×2600×3250 (mm)
Weight 1300 kg 2000 kg 2800 kg 3200 kg

As a professional EPS foam cutter supplier in China, Wealth provides clients with high-quality block cutting machines. We offer one-stop service for these machines. Our services include checking and selecting factories, production follow-up, product inspection, container loading supervision and after-sales service. We offer our clients with good solutions in our familiar field. Clients can also visit factories and check the products.
