Description

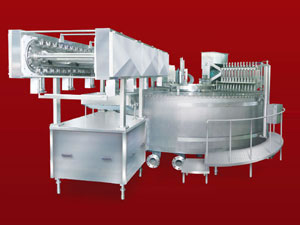

This rotary ice cream production line is used for making colored ice cream bars. It is made of stainless steel. This ice cream bar line is an automated product. It is suitable for producing ice cream bar on a stick. Refrigeration method is used to chill the ice cream slurry. The operations are very easy. This machine can be applied to restaurant, cold beverage shop, hotel, frozen food factory and many other places.
Features
1. Rotary ice cream production line has a beautiful appearance.
2. This ice cream bar line has compact structure and it occupies little room.
3. The mould is always kept in the frozen brine tank and it can be changed swiftly and conveniently.
4. Ice cream production line is of good sanitation. It is safe and reliable. It produceS no pollution to the environment.
5. This ice cream bar Line is the most advanced one of the fourth disk-type.
Parameters
| Output | 50g Max. Feed-In Temperature: below 5℃ | 15000 piece/hour |
| Mould | Number of Moulds in Each Row | 12 piece |
| Mould Line | 140 piece | |
| Electrical | Phase | 3 Phase |
| Voltage | 380 V | |
| Frequency | 50 HZ | |
| Power of Mould-Stripping Pump | 0.75 KW | |
| Power of Milk Pump | 0.75 KW | |
| Power of Vacuum Pump | 2.2 KW | |
| Main Power | ab10 KW | |
| Inner Circle Pump | 5.5 KW | |
| Air | Pressure | 0.6 MPa |
| Consumption Air | 3 m³/min | |
| Steam | Pressure | 0.05≤P≤0.25MPa |
| Temperature | ＜120℃ | |
| Consumption | ab60 kg/hour | |
| Secondary Refrigerant Calcium Chloride | Density | 32 Baume degrees |
| Flowing | 180 m³/hour | |
| Temperature | ＜-30℃ | |
| PH | 8-9 PH | |
| Cooling Volume Working Conditions ±35℃ | ab165 KW | |
| Bar Specification | (93-140) × 10 × 2 (m) | |
| Dimensions (L × W × H) | 4920 × 3128 × 2100 (mm) | |
| Weight | 8.6 t | |
| Pipe Connection | Compressed Air | 1/2 inch |
| Steam | 1/2 inch | |
| Cleaning Water | 1/2 inch | |
| Inlet of Brine | Ф144 | |
