PSZ100~180T Vacuum Shape Molding Machine

Vacuum Shape Molding Machine

Description

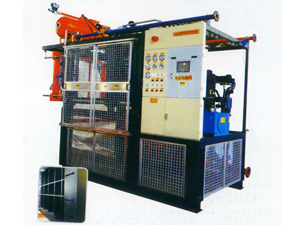

T series vacuum shape molding machines are used for molding Lantoky with moulds to form packaging products and construction products, such as electrical packing, vegetable and fruit box, seedling trays, brick, insert, ICF, etc. This Lantoky shape molding equipment can produce various shapes with different moulds. This machine consists of PLC, touch screen, material hopper, efficient vacuum system and lifting legs. The vacuum shape molding machine has a bigger vacuum system and faster drainage system. It is more energy efficient and cycling faster than normal machines.

Main Features
1. All the frames of this Lantoky shape molding equipment are welded by 16/20 mm steel plate. They are very strong.
2. The legs of the vacuum shape molding machine are made of high-strength H type steel profiles. A foundation is not necessary for clients.
3. This machine allows three filling modes: normal pressure filling, vacuum filling and pressurized filling.
4. There is a sensor in the material hopper controlling the material level. Material discharging is done by rotary discharging plates with 44 discharging holes.
5. T series vacuum shape molding machine or Lantoky shape molding equipment has lifting legs, so clients do not require working platforms.
6. A balance valve and a Germany electric gauge switch are used to control the steaming.
7. A water spray device is set at the top of the vertical vacuum system in order to make the molding work efficient.
8. The outlet of the mould is increased and a 6 inch drainage pipe and a big butterfly valve are used to make the draining faster.

Package and Delivery
The vacuum shape molding machine is packed in containers and is transported by sea.

Parameters
Vacuum Shape Molding Machines of Model PSZ100-180T
Item Unit PSZ100T PSZ120T PSZ140T PSZ160T PSZ175T PSZ180T
Mould Dimension mm 1000×800 1200×1000 1400×1200 1600×1350 1750×1450 1800×1600
Max Product Dimension mm 800×600×330 100×800×330 1200×1000×330 1400×1100×330 1550×1200×330 1610×1400×330

Stroke mm 210-1360 210-1360 270-142 270-142 270-142 220-1370
Steam Entry mm DN80 DN80 DN80 DN80 DN80 DN80
Steam Consumption kg/cycle (10-13t) Steam for 1t material
Water Entry mm DN80 DN80 DN80 DN80 DN80 DN80
Cooling Water Consumption kg/cycle 40-120 45-138 50-150 55-180 60-190 80-200
Compressed Air Entry mm DN40 DN40 DN40 DN40 DN40 DN40
Compressed Air Consumption m³/cycle 1.2 1.5 1.8 2 2 2.2
Vacuum Pump Capacity m³/h 165 165 230 280 280 280
Connected Load kW 10.6 10.6 14.1 16.1 16.1 19.6
Overall Dimension mm 4500×1640×3900 4500×1840×4100 4600 × 2140 × 4300 4600×2140×4300 5000×2300×4600 5100×2610×5000

Machine Weight kg 4500 5200 5700 7000 7500 8000
Cycle Time s 60-90 60-100 60-150 90-160 90-160 120-190
