U-Shape Box Condensing Unit

U-Shape Box Condensing Unit

Description

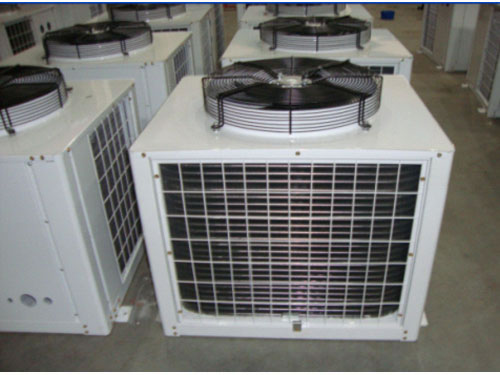

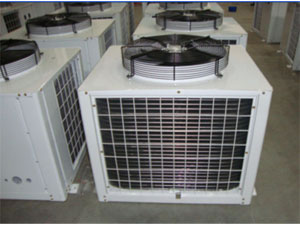

This box type condensing unit has a U shape condenser. It is suitable for outdoors or places without machine room. It is composed of compressor, condenser, filter, valves, etc. It is also used for compressing and liquidizing refrigerant. This condensing device can be configured with different condensing blower according to clients’ requirement.

Features
1. U shape box type condensing unit has rational structure. It can be equipped with different types of compressors.
2. This condensing device is a mature product. It has low failure rate. The after-sale service system for this unit is complete.
3. The space between fins is adjustable between 20 mm and 30 mm to meet clients’ needs in different conditions.
4. This box type condensing unit with U shape condenser has passed air-tightness testing under 3.0 MPa air pressure. This condensing device has good air-tightness performance when leaving the factory.

Use and Maintenance
1. Clients should follow the operation manual strictly when using the box type condensing unit.
2. No-professionals are prohibited to operate this condensing device.
3. Refrigerant oil and electrical device are most important factors needed to paid attention in maintenance. Refrigerant oil should be changed regularly and the electrical device should be protected from water.

Package and Delivery
This box type condensing unit is delivered by freight transportation in wooden packages. This product can be delivered in time.

Parameters

Technical Data   Model No. of Box Type Condensing Unit
FVBZ-005/M FVBZ-008/M FVBZ-010/M FVBZ-012/M FVBZ-015/M FVBZ-020/M FVBZ-025/M FUBZ-030/L
Compressor Model 4DC-6.2 4TCS-8.2 4PCS-10.2 4NCS-12.2 4H-15.2 4G-20.2 6H-25.2 6G-30.2
Titular Ref. Capacity 7284 12333 14722 16796 21250 24565 31535 36380
Compressor Rated Input Power 3.75 6 7.5 9 11.25 15 18.75 22.5
Refrigerant R22
Power 380V-3PH-50Hz
Compressor Rated Input Current 62.0 81.0 99.0 113.0 132.0 158.0 193.0 220.0
Compressor Max Continuous Current 13.5 17.0 21.0 24.0 31.0 37.0 45.0 53
Power of Crankcase Heater 0~120 0~120 0~120 0~120 140 140 140 140
Power of Condensing Fan Motor 330 160×2 250×2 230×2 450×2 600×2 520×3 830×2
Fan Motor Working Current 0.8 0.5×2 0.6×2 0.6×2 0.9×2 1.2×2 1.5×2 1.6×2
Range Of Evaporating Temperature -5~40℃
Cold Room Temperature -10~-35℃( when the evaporating temperature is below -20℃, the methods like additional cooling or restricting the suction temperature might be taken into consideration.)
