V-Shape Box Condensing Units

V-Shape Box Condensing Units

Description

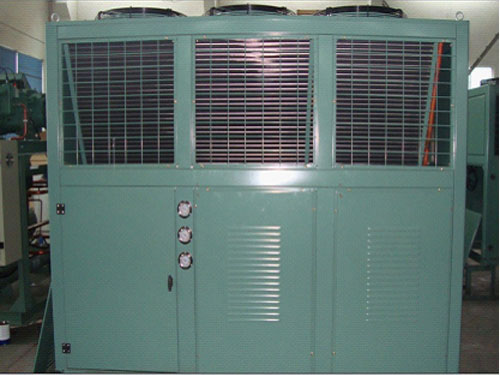

The box type condensing unit has a V shape condenser. It is used for compressing and liquidize refrigerant. This condensing device is composed of compressor, V shape condenser, solenoid valve, pressure controller and filter, etc. It is also equipped with expansion device and evaporator to carry on refrigerating cycle. All the devices of this unit are installed in a box. This box type condensing unit with V shape condenser is suitable for the outdoor conditions where there is no machine room. This condensing device can be applied to refrigeration industry, cold storage project, agriculture, food, hotel and chemical industries.

Features
1. Box type condensing unit is a mature product. It has very low failure rate.
2. Waste heat from the refrigeration process is used to make hot water. There is no heat consumption and emission pollution.
3. This condensing device can replace the unsafe heating devices like boiler and electric heater.
4. The unit efficiency and operating conditions have been improved.
5. It is controlled by micro computer without the need to monitor by human. Long-distance or centralized supervision are achievable.
6. Box type condensing unit has compact structure.
7. With the rational structure and uniform wind field, V shape condenser has fully fulfilled its heat-exchanging capability.
8. This condensing device is designed with rational properties and higher energy efficiency ratio.
9. Compressors of a broad range of brands can be used in this box type condensing unit.
10. It is suitable for all kinds of refrigerants, such as R134a, R404A, R507A and R22.
11. Maintenance for this unit is very convenient. The panels are easy to disassemble.
12. This condensing device saves operating cost and supervision cost.
13. We provide complete after-sale service for this product. It can be delivered in time.

Use and Maintenance
1. Please use this box type condensing unit in strict accordance with the operation manual. Non-professionals are prohibited to operate the machine.
2. Refrigerant oil should be changed regularly.
3. Please keep the electrical device away from water.

Package and Delivery
Box type condensing unit or condensing device is packed with wooden box and is delivered by freight transportation.

Parameters

Technical Data   Unit model
FVBZ-088/L FVBZ-010/L FVBZ-012/L FVBZ-015/L FVBZ-020/L FVBZ-025/L FVBZ-030/L
Compressor Model 4TCS-8.2 4PCS-10.2 4NCS-12.2 4H-15.2 4G-20.2 6H-25.2 6G-30.2
Titular Ref. Capacity 12333 14700 16796 21250 24565 31535 36380
Compressor Rated Input Power 6 7.5 9 11.25 15 18.75 22.5
Refrigerant R22
Power 380V-3PH-50Hz
Compressor Rated Input Current 81.0 99.0 113.0 132.0 158.0 193.0 220.0
Compressor Max Continuous Current 17.0 21.0 24.0 31.0 37.0 45.0 53.0
Power of Crankcase Heater 0~120 0~120 0~120 140 140 140 140
Power of Condensing Fan Motor 160×2 250×2 250×2 600×2 780×2 800×2 780×3
Fan Motor Working Current 0.5×2 0.6×2 0.6×2 1.2×2 1.6×2 1.6×2 1.6×2
Range of Evaporating Temperature -5~-40℃
Cold Room Temperature -10~-35℃(when the evaporating temperature is below -20℃, the methods like additional cooling, restricting the suction temperature or liquid injecting cooling might be taken into consideration.)



Technical Data   Unit model
FVBZ-006/M FVBZ-010/M FVBZ-012/M FVBZ-015/M FVBZ-020/M FVBZ-025/M FVBZ-030/M
Compressor Model 4EC-6.2 4VCS-10.2 4TCS-12.2 4PCS-15.2 4NCS-20.2 4H-25.2 4G-30.2
Titular Ref. Capacity 10030 15504 19500 22270 27115 35360 40540
Compressor Rated Input Power 4.5 7.5 9 11.25 15 18.75 22.5
Refrigerant R22
Power 380V-3PH-50Hz
Compressor Rated Input Current 62.0 99.0 113.0 132.0 158.0 193.0 220.0
Compressor Max Continuous Current 23.0 21.0 24.0 31.0 37.0 45.0 53.0
Power of Crankcase Heater 0~120 0~120 0~120 0~120 0~120 140 140
Power of Condensing Fan Motor 160×2 250×2 250×2 600×2 600×2 520×2 830×3
Fan Motor Working Current 0.5×2 0.6×2 0.6×2 1.2×2 1.2×2 1.5×2 1.6×2
Range of Evaporating Temperature 0~-20℃
Cold Room Temperature +12~-10℃(when the evaporating temperature is below -15℃, the methods like additional cooling or restricting the suction temperature might be taken into consideration.)
